Standard Drill Bit Sizes
Drill bits come in four sizing systems: fractional inches, wire-gauge numbers from #80 to #1, letters from A to Z, and millimetres. Enter any size — 1/4, #29, F, 6.5 mm or a decimal like 0.201 — and the converter shows the exact decimal and metric diameter and the nearest bits in every other system, plus tap drill sizes for common threads.
- Free to use
- No sign-up
- Runs in your browser
Drill size converter
Drill Size Charts
Printable drill charts: number and letter drill sizes with decimal and metric equivalents, fractional sizes to 1/2″, a tap drill chart for UNC, UNF and metric threads, and clearance hole sizes — workshop wall format.
- Number drills (PDF/XLSX)
- Letter & fractional (PDF)
- Tap drills (PDF)
- Clearance holes (PDF)
Formats: PDF, XLSX. Instant download after payment (link valid 72 hours, up to 5 downloads). AI-assisted: the templates were drafted with AI help and reviewed and laid out before publishing.
$3.00 USD, one-time 4 files · about $0.75 each
- Instant download
- 7-day refund
- Secure checkout by Stripe
7-day money-back guarantee. Full refund within 7 days of purchase, even after you download.
Free sample: Clearance Hole Chart (PDF, 99 KB)
Full refund within 7 days — see the refund policy and license.
Free printables
Single sheets you can print right now, no sign-up. The full pack adds every sheet in one download plus the editable files.

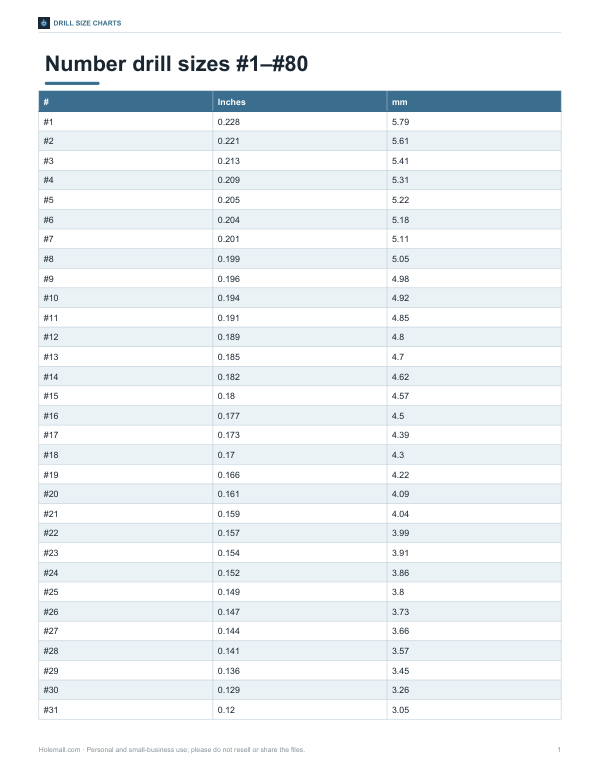

Printable Number Drill Size Chart

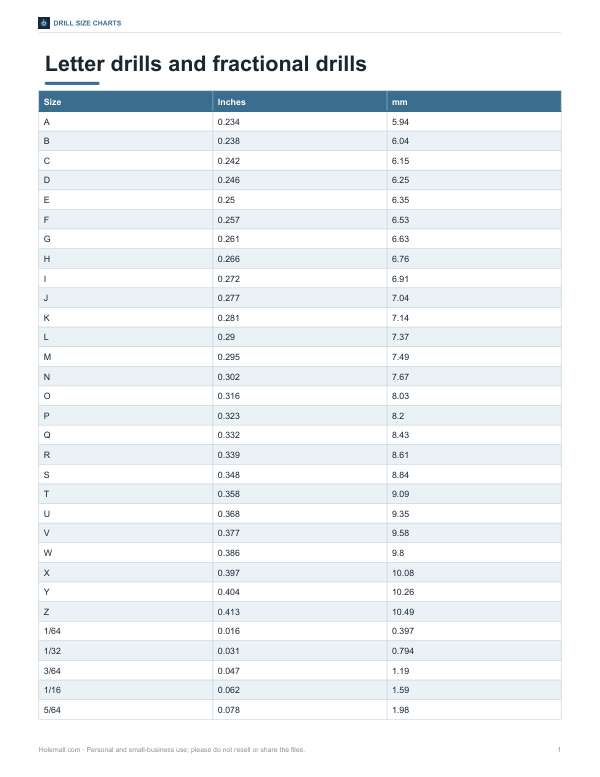

Printable Letter and Fractional Drill Size Chart

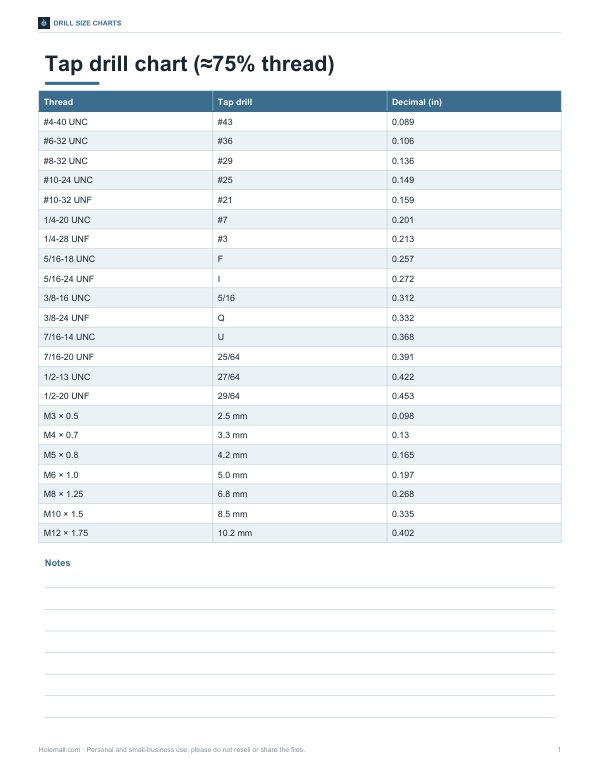

Printable Tap Drill Chart
Printable Clearance Hole ChartThe four drill size systems
| System | Range | Steps |
|---|---|---|
| Fractional inch | 1/64″ upwards | 1/64″ increments in most sets |
| Number (wire gauge) | #80 (0.0135″) to #1 (0.228″) | Larger numbers are smaller drills |
| Letter | A (0.234″) to Z (0.413″) | Continues above #1 |
| Metric | 0.5 mm upwards | Often 0.1 mm or 0.5 mm steps |
Number and letter drills fill the gaps between fractional sizes, which is why they are used for tap drills, clearance holes and precision work.
Number drill sizes
| # | Inches | # | Inches | # | Inches | # | Inches |
|---|---|---|---|---|---|---|---|
| #1 | 0.2280 | #21 | 0.1590 | #41 | 0.0960 | #61 | 0.0390 |
| #2 | 0.2210 | #22 | 0.1570 | #42 | 0.0935 | #62 | 0.0380 |
| #3 | 0.2130 | #23 | 0.1540 | #43 | 0.0890 | #63 | 0.0370 |
| #4 | 0.2090 | #24 | 0.1520 | #44 | 0.0860 | #64 | 0.0360 |
| #5 | 0.2055 | #25 | 0.1495 | #45 | 0.0820 | #65 | 0.0350 |
| #6 | 0.2040 | #26 | 0.1470 | #46 | 0.0810 | #66 | 0.0330 |
| #7 | 0.2010 | #27 | 0.1440 | #47 | 0.0785 | #67 | 0.0320 |
| #8 | 0.1990 | #28 | 0.1405 | #48 | 0.0760 | #68 | 0.0310 |
| #9 | 0.1960 | #29 | 0.1360 | #49 | 0.0730 | #69 | 0.0292 |
| #10 | 0.1935 | #30 | 0.1285 | #50 | 0.0700 | #70 | 0.0280 |
| #11 | 0.1910 | #31 | 0.1200 | #51 | 0.0670 | #71 | 0.0260 |
| #12 | 0.1890 | #32 | 0.1160 | #52 | 0.0635 | #72 | 0.0250 |
| #13 | 0.1850 | #33 | 0.1130 | #53 | 0.0595 | #73 | 0.0240 |
| #14 | 0.1820 | #34 | 0.1110 | #54 | 0.0550 | #74 | 0.0225 |
| #15 | 0.1800 | #35 | 0.1100 | #55 | 0.0520 | #75 | 0.0210 |
| #16 | 0.1770 | #36 | 0.1065 | #56 | 0.0465 | #76 | 0.0200 |
| #17 | 0.1730 | #37 | 0.1040 | #57 | 0.0430 | #77 | 0.0180 |
| #18 | 0.1695 | #38 | 0.1015 | #58 | 0.0420 | #78 | 0.0160 |
| #19 | 0.1660 | #39 | 0.0995 | #59 | 0.0410 | #79 | 0.0145 |
| #20 | 0.1610 | #40 | 0.0980 | #60 | 0.0400 | #80 | 0.0135 |
Letter drill sizes
| Letter | Inches | mm |
|---|---|---|
| A | 0.234 | 5.94 |
| B | 0.238 | 6.05 |
| C | 0.242 | 6.15 |
| D | 0.246 | 6.25 |
| E | 0.250 | 6.35 |
| F | 0.257 | 6.53 |
| G | 0.261 | 6.63 |
| H | 0.266 | 6.76 |
| I | 0.272 | 6.91 |
| J | 0.277 | 7.04 |
| K | 0.281 | 7.14 |
| L | 0.290 | 7.37 |
| M | 0.295 | 7.49 |
| N | 0.302 | 7.67 |
| O | 0.316 | 8.03 |
| P | 0.323 | 8.20 |
| Q | 0.332 | 8.43 |
| R | 0.339 | 8.61 |
| S | 0.348 | 8.84 |
| T | 0.358 | 9.09 |
| U | 0.368 | 9.35 |
| V | 0.377 | 9.58 |
| W | 0.386 | 9.80 |
| X | 0.397 | 10.08 |
| Y | 0.404 | 10.26 |
| Z | 0.413 | 10.49 |
Tap drill chart
| Thread | Tap drill | Decimal (in) |
|---|---|---|
| #4-40 UNC | #43 | 0.089 |
| #6-32 UNC | #36 | 0.1065 |
| #8-32 UNC | #29 | 0.136 |
| #10-24 UNC | #25 | 0.1495 |
| #10-32 UNF | #21 | 0.159 |
| 1/4-20 UNC | #7 | 0.201 |
| 1/4-28 UNF | #3 | 0.213 |
| 5/16-18 UNC | F | 0.257 |
| 5/16-24 UNF | I | 0.272 |
| 3/8-16 UNC | 5/16 | 0.3125 |
| 3/8-24 UNF | Q | 0.332 |
| 7/16-14 UNC | U | 0.368 |
| 7/16-20 UNF | 25/64 | 0.3906 |
| 1/2-13 UNC | 27/64 | 0.4219 |
| 1/2-20 UNF | 29/64 | 0.4531 |
| M3 × 0.5 | 2.5 mm | 0.0984 |
| M4 × 0.7 | 3.3 mm | 0.1299 |
| M5 × 0.8 | 4.2 mm | 0.1654 |
| M6 × 1.0 | 5.0 mm | 0.1969 |
| M8 × 1.25 | 6.8 mm | 0.2677 |
| M10 × 1.5 | 8.5 mm | 0.3346 |
| M12 × 1.75 | 10.2 mm | 0.4016 |
Tap drills shown give roughly 75% thread engagement, the usual general-purpose choice. For hard materials or deep holes, a slightly larger drill reduces tapping torque.
How to use the converter
- Type a size in any system: 1/4, 7/64, #29, F, 6.5mm, or a decimal such as 0.201 (values above 2 are read as millimetres).
- Read the exact decimal and metric diameter.
- See the nearest bits in every other system, with the difference in thousandths of an inch.
- If the size is a standard tap drill, the matching threads are listed.
Worked example
A #7 drill is 0.201″ (5.105 mm) — the standard tap drill for a 1/4-20 UNC thread. The nearest fractional size is 13/64″ (0.2031″), just 2 thousandths larger, and the nearest metric bit is 5.1 mm. If you don’t have a #7, a 13/64″ bit works for most tapping in soft materials.
Clearance holes
| Screw | Close fit | Free fit |
|---|---|---|
| #6 | #28 (0.1405″) | #25 (0.1495″) |
| #8 | #19 (0.166″) | #16 (0.177″) |
| #10 | #11 (0.191″) | #7 (0.201″) |
| 1/4″ | F (0.257″) | H (0.266″) |
| M4 | 4.3 mm | 4.5 mm |
| M5 | 5.3 mm | 5.5 mm |
| M6 | 6.4 mm | 6.6 mm |
Close fit gives accurate location; free fit allows for slight misalignment.
Drilling tips
- Centre-punch before drilling so the bit doesn’t wander.
- Use slower speeds for larger bits and harder metals.
- Use cutting fluid for steel and a pilot hole for bits above about 3/8″.
- Keep bits sharp — a dull bit makes oversized, rough holes.
- Measure bits with calipers; markings wear off.
Frequently asked questions
What size is a #7 drill bit?
0.201 inches (5.1 mm), the tap drill for 1/4-20.
What is an F drill bit?
0.257 inches (6.53 mm), the tap drill for 5/16-18.
Which is bigger, #1 or #80?
#1 (0.228″) is much larger than #80 (0.0135″).
What drill size for an M6 tap?
5.0 mm.
What is 1/4 inch in mm?
6.35 mm.
Is my data stored?
No, it runs in your browser.
